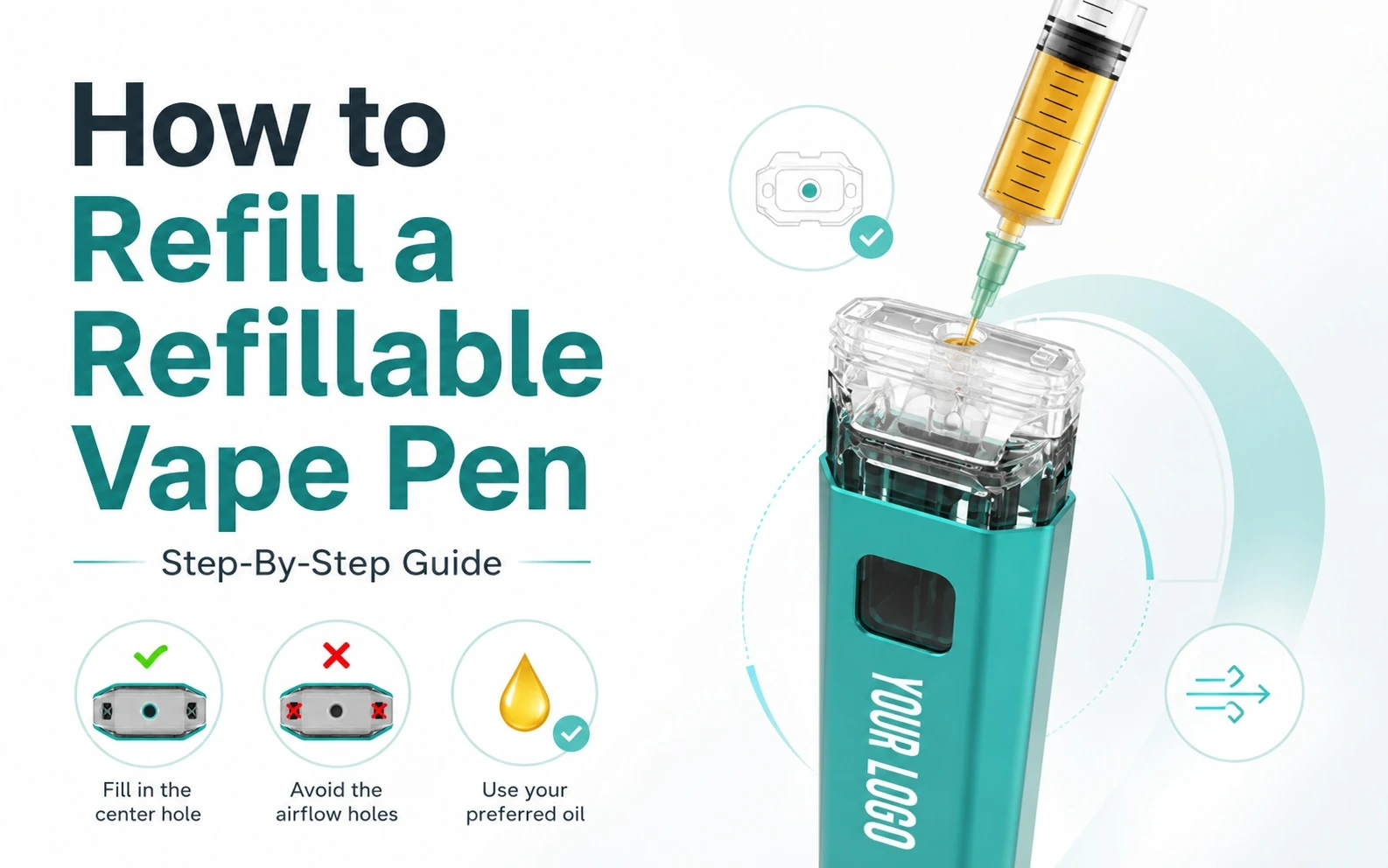

How to Refill a Refillable Vape Pen: Step-By-Step Guide

To refill a refillable vape pen, identify the correct fill port, add compatible cannabis oil slowly, keep oil out of the airflow channel, reseal the mouthpiece, and allow the heating core to prime before use. The exact procedure depends on the hardware. A center opening may be an airway on one device and a fill port on another, so the product-specific filling diagram should always take priority over generic instructions.

Can Every Vape Pen Be Refilled?

A refillable vape pen is a device whose oil chamber or cartridge is intentionally designed to be opened, filled, and securely closed more than once. Common designs include threaded mouthpieces, reusable top-fill caps, and side-fill ports protected by silicone plugs.

Not every empty vape pen fits this definition.

Consumer-Refillable Vape Pens

A consumer-refillable device normally has at least one of these features:

• A mouthpiece that can be removed without tools
• A clearly marked top-fill or side-fill port
• A reusable silicone plug
• Manufacturer instructions for repeated filling
• A replaceable pod or cartridge rated for multiple fill cycles

A mouthpiece that looks removable is not necessarily reusable. Some press-fit mouthpieces lock permanently after installation. Pulling them off can damage the seal or break the retaining tabs.

Fillable AIO Devices and Disposable Vapes

A fillable AIO vape is commonly supplied empty to a cannabis brand or filling facility. The oil is added during production, the mouthpiece is pressed into place, and the device is then sealed for sale. After final assembly, it may not be intended for consumer refilling.

A disposable vape combines the battery, heating core, oil chamber, and mouthpiece in a single-use unit. Some disposables can be physically opened, but that does not make them suitable for repeated filling. Reopening one may damage the airway, draw sensor, battery enclosure, or sealing system.

For repeated filling, use hardware specifically identified as refillable. Do not treat every fillable or disposable device as a reusable vape pen.

What You Need Before Refilling a Vape Pen

Prepare the correct tools before opening the device:

• A verified refillable cartridge, pod, or vape pen
• A finished cannabis oil formulation approved for that hardware
• A blunt-tip syringe or supplier-recommended filling needle
• Disposable gloves
• Paper towels or a lint-free cloth
• A clean, stable work surface
• The product-specific filling diagram

A blunt-tip syringe uses a non-sharp metal or plastic filling needle. It provides more control than a dropper, especially when working with high-viscosity cannabis oil. The tip can be guided along the chamber wall without puncturing silicone seals or directing oil into the airway.

Oil compatibility matters as much as filling technique.

Distillate, live resin, live rosin, CO2 oil, and terpene-rich formulations can have very different viscosities. Oil that is too thick may not reach the ceramic heating core quickly enough, resulting in weak vapor, dry heating, or a burnt taste. Oil that is too thin may flood the heating chamber or leak through the airflow system.

Do not put ordinary oral CBD oil into a vape cartridge. Oral oils may contain carrier ingredients that were not developed for inhalation. Do not add thinning agents or extra terpenes unless the finished formulation has been professionally developed and tested for the intended hardware.

The cartridge should be selected for the finished oil-not forced to work by altering the oil after filling.

Identify the Fill Port, Airway, and Mouthpiece Design

Before adding oil, locate three parts:

• The fill port, where the filling needle enters
• The airway, which carries vapor to the mouthpiece
• The mouthpiece seal, which closes the oil chamber

The center hole is often an airway, but not always. Never identify a fill port by position alone.

Common Refillable Vape Designs

How to Refill a Refillable Vape Pen Step by Step

The following method applies to many refillable cannabis vape pens, cartridges, and open-top AIO devices. Always follow the instructions supplied for the exact hardware.

Step 1: Turn Off the Device

Switch off the battery or activate its lock function. If the device uses a removable 510 cartridge, unscrew the cartridge before filling.

Never refill a vape while it is charging. Stop if the battery is swollen, the casing is cracked, the device is unusually hot, or oil has entered the electronics.

Place the cartridge upright on a clean surface.

Step 2: Open and Inspect the Hardware

Remove the mouthpiece or open the fill port using the approved method. Do not use a knife, screwdriver, or pliers on a device that is not designed to be opened.

Inspect the hardware for:

• Torn, displaced, or missing O-rings
• Cracks in the tank or housing
• Oil residue inside the airway
• Damaged threads
• Dirt on the sealing surface
• A loose or uneven silicone insert

For devices similar to the ASM-GD, confirm that the top silicone seal is tightly and evenly attached before filling. A misaligned seal can interfere with both oil filling and final mouthpiece assembly.

Step 3: Check the Oil's Flow

The oil should move through the syringe without excessive pressure. Very cold or thick oil can be difficult to inject and may trap large air pockets inside the chamber.

Do not use a microwave, open flame, hot plate, or uncontrolled direct heat.

When warming is allowed by the oil supplier, use a controlled low-temperature method. Some sealed syringes may be warmed gently for approximately three to five minutes, but the approved temperature and procedure should come from the oil and hardware suppliers.

The goal is to improve flow-not to make the oil hot.

Step 4: Insert the Needle into the Correct Fill Port

Place the blunt-tip needle into the designated filling opening. Guide it toward the wall of the oil chamber.

Do not insert the needle into the center airway or an airflow hole.

In a center-post cartridge, the airway is usually the metal tube running through the middle. In an open-top AIO device, the airflow opening may be located elsewhere. Refer to the filling diagram rather than guessing from appearance.

For devices with two fill ports, confirm whether each port serves a separate chamber. Do not assume that oil added on one side will automatically reach the other.

Step 5: Add Oil Slowly

Push the syringe plunger slowly and steadily. Watch the oil level as it rises and allow displaced air to escape.

The device may remain upright or be held at a slight angle when the fill-port structure requires it. An angle of approximately 45 degrees can help with some narrow chambers, but it is not a universal requirement.

Do not force thick oil through the needle. Excessive pressure can cause oil to release suddenly, contaminate the sealing surface, or enter the airflow path.

If oil begins to collect around the top plate, stop filling and clean the area before continuing.

Step 6: Stop at the Rated Capacity

Do not fill the chamber to the absolute top.

Use the rated capacity, marked fill line, or supplier filling specification. Many cartridges appear approximately 80% to 90% full when the correct empty space is left, but this percentage is only a visual reference.

Headspace is the small amount of empty volume left above the oil. It provides room for the mouthpiece, internal seals, and pressure changes during assembly.

Without enough headspace, installing the mouthpiece may force oil into the airway or heating chamber. Overfilling is one of the most common causes of leakage after a refill.

Step 7: Clean and Reinstall the Mouthpiece

Remove the syringe carefully. Wipe oil from the threads, top plate, outer wall, and cartridge base.

For a threaded mouthpiece, start the threads straight. Tighten only until the seal is secure. Overtightening can deform an O-ring or damage plastic threads.

For a press-fit mouthpiece, align it vertically and apply even pressure. Pressing at an angle can leave one side partially open.

ASM-GD, ASM-D3, and ASM-X1 filling instructions require the mouthpiece to be pressed on within one to two minutes after filling. This is a hardware-specific production requirement and should not be applied to every refillable vape cartridge.

Step 8: Let the Heating Core Prime

Priming is the period during which oil enters the intake ports and saturates the ceramic or wicking material before heating begins.

Keep the filled vape upright. Do not activate it immediately.

Ten to fifteen minutes is a practical general waiting period for many ceramic cannabis cartridges. Thick oil may need longer. Priming time depends on:

• Oil viscosity
• Room temperature
• Intake-hole size
• Ceramic porosity
• Cartridge construction

A visible air bubble near an intake port may indicate that oil has not yet fully reached the heating area.

Step 9: Start with a Gentle Draw

Reconnect the cartridge and begin at the lowest voltage recommended by the hardware supplier.

For many ceramic cannabis cartridges, 2.8V to 3.2V is a common low-voltage reference range. It is not a universal setting. Coil resistance, ceramic design, airflow, and oil formulation determine the correct operating voltage.

Take a short, gentle draw of approximately two to three seconds. Avoid repeated long pulls immediately after filling.

A weak first draw does not always mean the voltage is too low. The oil may simply need more time to reach the ceramic core.

How Much Oil Should You Add, and How Long Should You Wait?

Three limits matter after filling: rated capacity, priming time, and first-use voltage.

Fill Level and Headspace

Use the device's rated capacity as the primary limit. Do not add more oil simply because the chamber appears to have unused space.

The visible oil level varies because the mouthpiece, center post, seals, and ceramic assembly occupy different amounts of internal volume. One cartridge may look almost full at its correct capacity, while another may appear only 80% full.

Supplier specifications are more reliable than visual estimates.

Priming and Assembly Time

For many ceramic cartridges, allow at least 10 to 15 minutes of upright priming. High-viscosity oil or a cold environment may require more time.

Do not confuse priming time with mouthpiece assembly time.

Certain ASM fillable AIO devices require the mouthpiece to be pressed into place within one to two minutes after oil filling. The sealed device still needs additional time before activation so the oil can reach the ceramic heating core.

First-Use Voltage

Start with the lowest validated setting. Increasing voltage too quickly can overheat terpenes or create a burnt taste before oil feeding becomes stable.

If the first draw is weak, wait longer before raising the voltage.

Common Vape Pen Refilling Mistakes to Avoid

Most leakage, clogging, and burnt flavor problems begin during filling.

Avoid these mistakes:

• Opening a disposable or sealed device that is not designed for reuse
• Guessing which opening is the fill port
• Injecting oil into the center airway
• Filling too quickly
• Overfilling the oil chamber
• Leaving oil on the sealing surface
• Reinstalling a damaged O-ring
• Pressing the mouthpiece at an angle
• Overtightening threaded parts
• Activating the device before priming is complete
• Starting at excessive voltage
• Taking repeated long draws immediately after filling
• Heating oil with a microwave, flame, or uncontrolled high temperature
• Adding untested thinning agents
• Putting oral CBD oil into a vape cartridge
• Reusing hardware with a crack, persistent leak, or lasting burnt taste

The most important precaution is to identify the actual filling route. A hole that is safe to fill on one device may be the airflow path on another.

Troubleshooting Problems After Refilling

Do not use forceful blowing as a universal solution for clogging. Airflow can activate a draw-activated device, and blowing may push oil deeper into the electronics.

For a dirty 510 connection, turn off the battery and begin with a dry lint-free cloth or cotton swab. When the manufacturer permits isopropyl alcohol, use only a very small amount and allow the contact to dry completely before reconnecting the cartridge.

Persistent burnt flavor, repeated leakage, abnormal heat, or visible damage means the hardware should be removed from use. For a deeper diagnosis, see how to fix a leaking AIO vape device.

Storage, Reuse Limits, and Refillable Vape Pen FAQs

Store filled vape pens upright whenever possible. Keep them away from direct sunlight, freezing conditions, hot vehicles, children, and pets. Turn off or lock the device when it is not being used.

ASM-GD, ASM-D3, and ASM-X1 filling instructions recommend storing filled devices at 68–77°F, or approximately 20–25°C. Other hardware may have different storage requirements, so the supplier's specification remains the final reference.

There is no reliable universal number of times that every cartridge can be refilled. Stop reusing it when:

• The mouthpiece or seal no longer closes securely
• Clogging becomes frequent
• Vapor production drops sharply
• The cartridge develops a persistent burnt taste
• The chamber cracks or begins leaking
• The product was not originally designed for repeated opening

For related usage guidance, see how to know when a vape pen is empty.

Can You Refill a Disposable Vape Pen?

Some disposable vapes can be physically opened, but they are not designed or validated for repeated filling. Reopening one may damage the sealing system, airway, heating core, or battery enclosure. Use purpose-built refillable vape hardware when repeated filling is required.

Can You Mix Two Cannabis Oils in One Cartridge?

It is not recommended. Different oils may have different viscosity, terpene content, stability, and heating requirements. Mixing them can change oil feeding and vaporization in ways the cartridge was not tested to handle.

Should Thick Cannabis Oil Be Warmed Before Filling?

Only when the oil supplier and hardware supplier allow a controlled warming process. Do not use a microwave, open flame, or unregulated high heat. For commercial production, the filling temperature should be established through oil-specific testing.

Why Does a Vape Taste Burnt After a Refill?

The most common causes are incomplete priming, oil that is too thick for the intake system, excessive voltage, repeated long draws, or a heating core that has already been damaged. Let the device sit upright, return to the lowest approved voltage, and stop using it if the burnt taste continues.

Final Takeaway

To refill a refillable vape pen correctly, verify that the hardware is designed to open, identify the approved fill port, keep oil out of the airway, fill slowly to the rated capacity, reseal the mouthpiece properly, and allow the ceramic core to prime before use.
